Sweep-Line algorithm for intersections

Suppose you're given a lot of lines. Your task is to give a list of all pairs of lines that cross.

The list of lines might be something like this:

a: {(1|4),(6|1)}
b: {(2|1),(5|4)}
c: {(3|1),(6|4)}
d: {(4|1),(8|5)}
e: {(3|4),(9|3)}

f: {(7|2),(9|3)}
g: {(6|7),(9|1)}
h: {(11|1),(16|5)}
i: {(13|3),(13|4)}
j: {(15|3),(15|4)}

k: {(13|2),(14|2)}
l: {(14|1),(14|2)}
m: {(17|3),(21|3)}
n: {(19|5),(19|1)}
o: {(11|1),(16|5)}

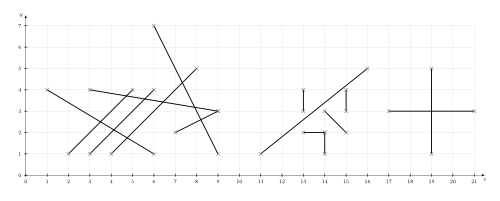

You can visualize the given lines like this:

Now your list of pairs should look like this: [[a, b], [a, c], [a, d], [d, g], [e, b], [e, c], [e, d], [e, f], [e, g], [f, g], [k, l], [m, n], [h, o]] So we have 15 lines and 13 intersections.

What is an intersection?

Two lines $a, b$ intersect $:\Leftrightarrow \exists \text{Point} P: P \in a \land P \in b$

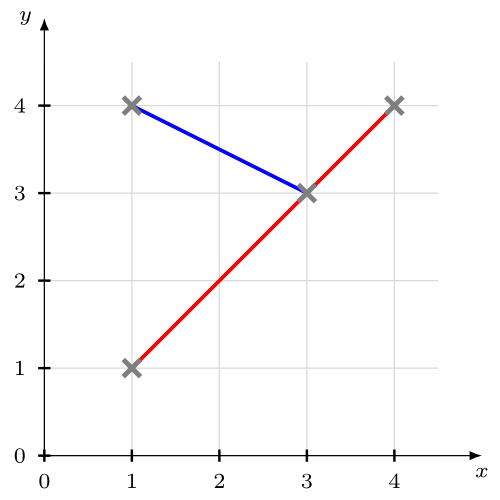

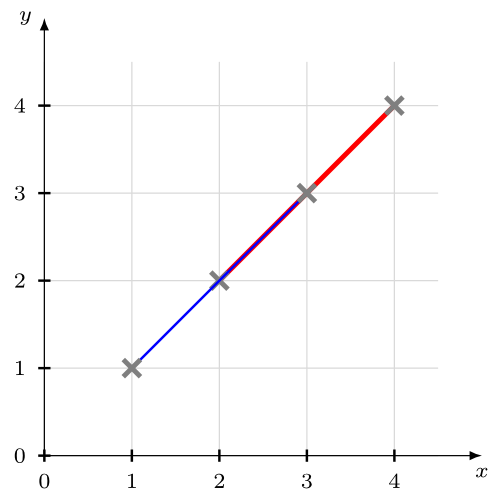

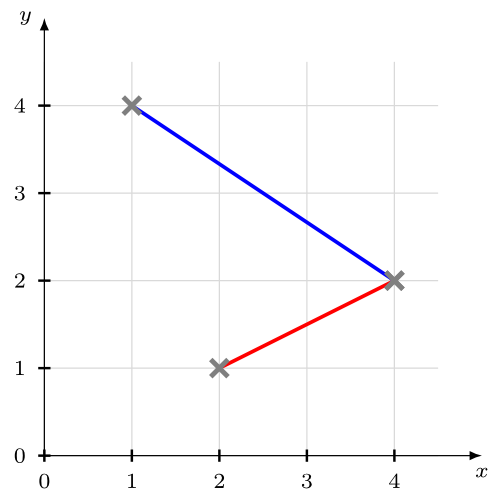

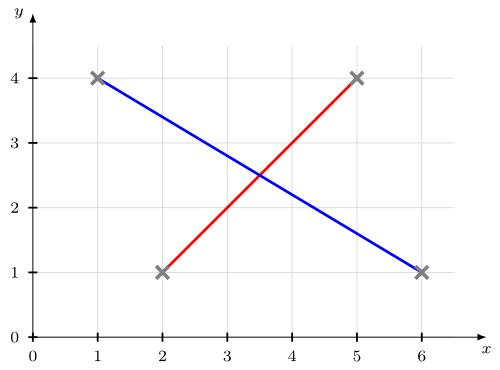

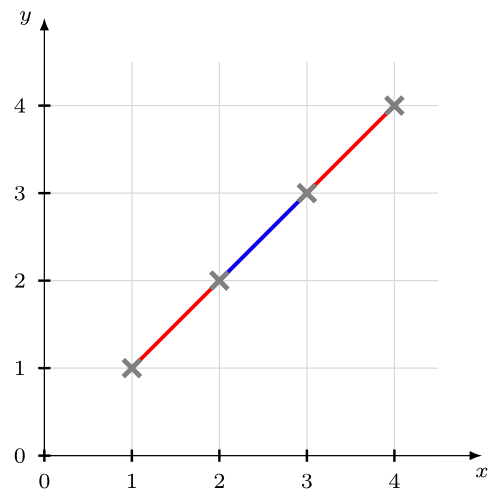

This means, all of the following images show intersecting lines: {% gallery columns="3" %} ../images/2013/01/intersecting-lines-1.png "Intersecting lines: #1" ../images/2013/01/intersecting-lines-2.png "Intersecting lines: #2" ../images/2013/01/intersecting-lines-3.png "Intersecting lines: #3" ../images/2013/01/intersecting-lines-4.png "Intersecting lines: #4" ../images/2013/01/intersecting-lines-5.png "Intersecting lines: #5"

You might want to read my article How to check if two line segments intersect, as we need a method that gets two line segments as parameters returns if they intersect.

How many intersections can exist?

Let $n$ be the number of lines.

$n=1$: If you have only one line, there is obviously no intersection. A line can only intersect with another line

$n=2$: The new line can only intersect with lines that are already there. So there is one new intersection.

$n=3$: As before, the new line can only intersect with existing lines. So you get at most two new intersection points. As the old lines can only have 1 intersection point at most, you have a maximum of 3 intersection points.

I guess you noticed the pattern. The maximum of intersection points of $n$ is $\displaystyle \sum_{i=1}^{n-1} i = \frac{(n-1)^2 + (n-1)}{2} = \frac{n^2 - 2n + 1 + n -1}{2} = \frac{n^2-n}{2}$

At the moment, this is only an upper border. We didn't prove that you can actually get that much intersections. We only showed that you can't get more intersections.

A simple solution

I know how to check if two line segments intersect (see article). But lets say I have $n$ line segments and you want to find every pair of lines that intersect. You could simply go through each combination of pairs:

First way to think about it

First, I can check if the first line crosses the second, third, forth, ... n-th line.
Then I check if the second line crosses the third, forth, ... n-th line.
...
I check if the (n-1)-th line crosses the n-th line.

So I have to do $(n-1) + (n-2) + \dots + 1 = \sum_{i=1}^{n-1} i = \frac{(n-1)^2+(n-1)}{2} = \frac{n^2-n}{2} $checks.

Second way to think about it

I don't care about order. I have to do every check. So when I have $n$ elements and I want to choose $\binom{n}{2} = \frac{n!}{2!(n-2)!} = \frac{n \cdot (n-1)}{2} = \frac{n^2-n}{2}$

Sweep-Line algorithm

The sweep line algorithm for checking intersections in a set of line segments goes through the image from left to right. When the sweep line (which is only a x-coordinate!) goes over a new line segment, it adds this to a datastructure. When the sweep line comes over an end of a line segment, it removes the line segment from this data structure.
